Lighting Control Module

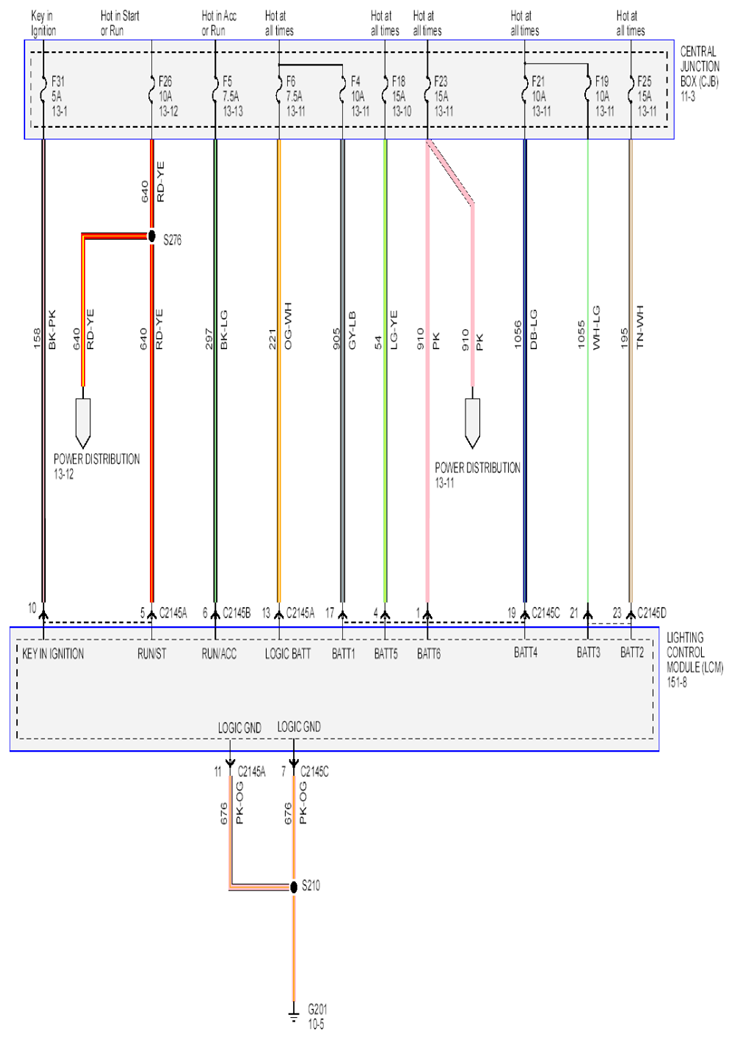

Fig 1: Lighting Control Module Circuit Diagram (1 Of 3)
G07853499Courtesy of FORD MOTOR CO.

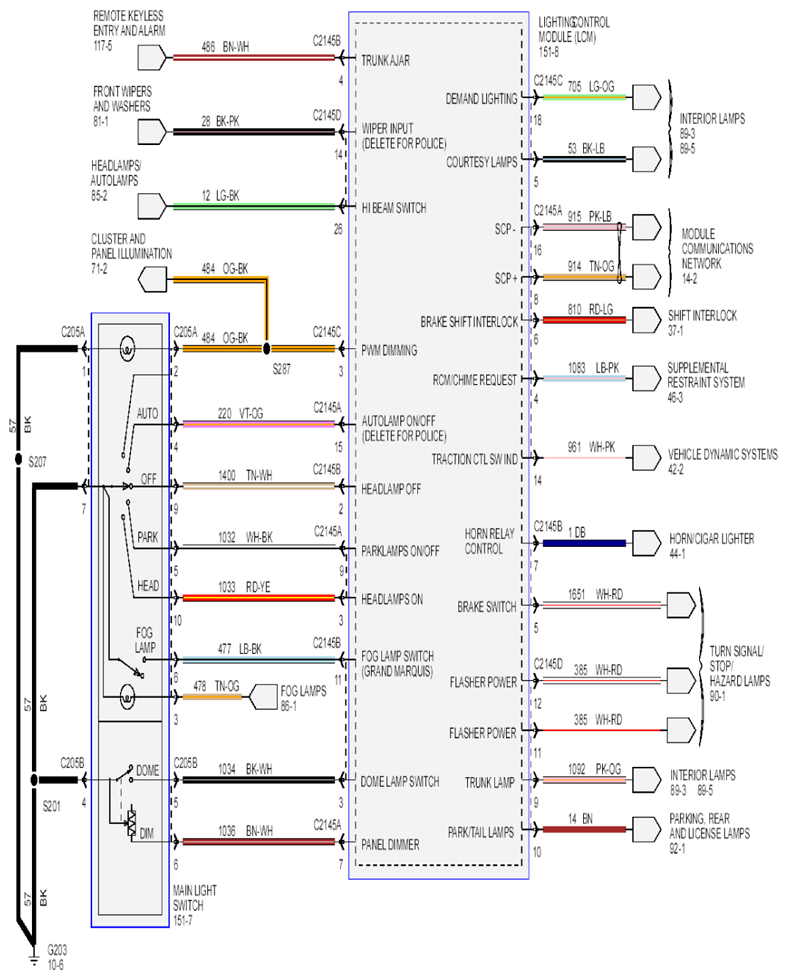

Fig 2: Lighting Control Module Circuit Diagram (2 Of 3)
G07853500Courtesy of FORD MOTOR CO.

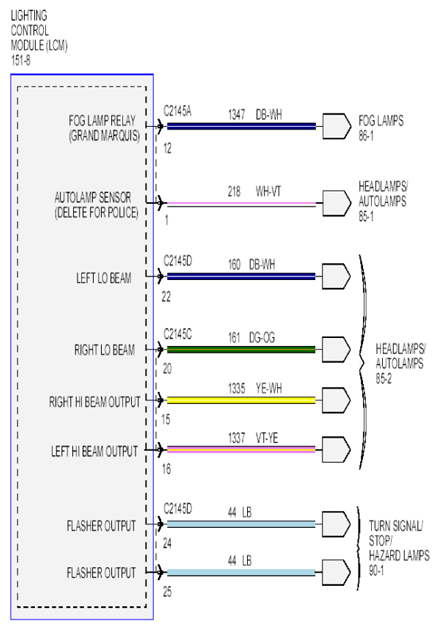

Fig 3: Lighting Control Module Circuit Diagram (3 Of 3)
G07853501Courtesy of FORD MOTOR CO.
