Removal and Installation

  1. Remove the Air Cleaner (ACL) outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
  2. Disconnect the electronic throttle control electrical connector.
  3. Remove the 4 bolts and the Throttle Body (TB).
    • Inspect the TB  gasket and install new as necessary.
    • To install, tighten to 10 Nm (89 lb-in) in the sequence shown.

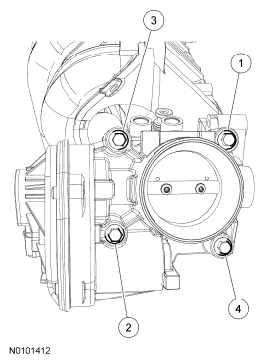

      Fig 1: Identifying Throttle Body Bolts Tightening Sequence
      G06292603Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
