Electronic Throttle Control Position Sensor Connector - C189

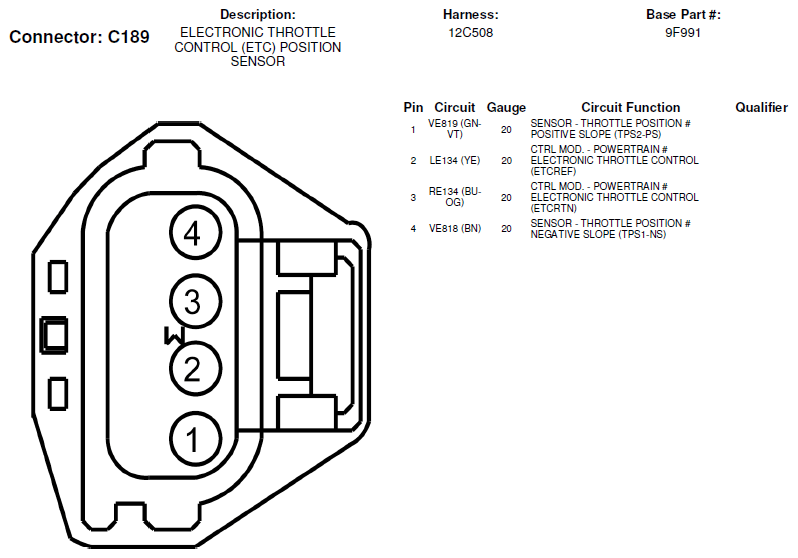

Fig 1: Electronic Throttle Control Position Sensor Connector End View (C189)

G06413725

Courtesy of FORD MOTOR CO.
