Driver Load Limiting Retractor Connector - C3201

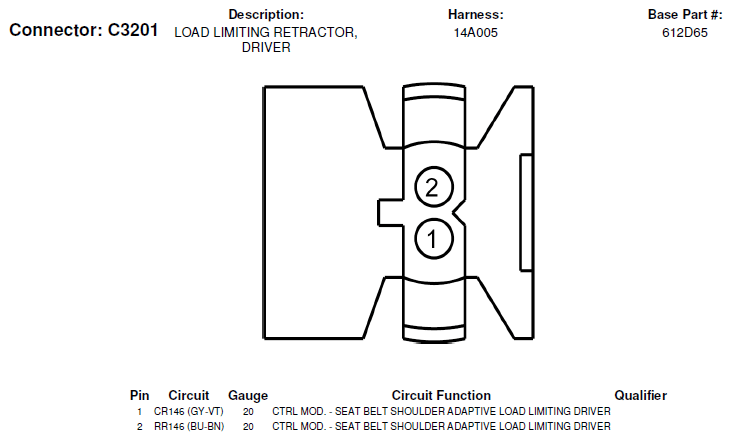

Fig 1: Driver Load Limiting Retractor Connector End View (C3201)

G06413999

Courtesy of FORD MOTOR CO.
