Transaxle Support Insulator - 3.5L: Material

MATERIAL CHART

Item	Specification
Threadlock and Sealer TA-25	WSK-M2G351-A5

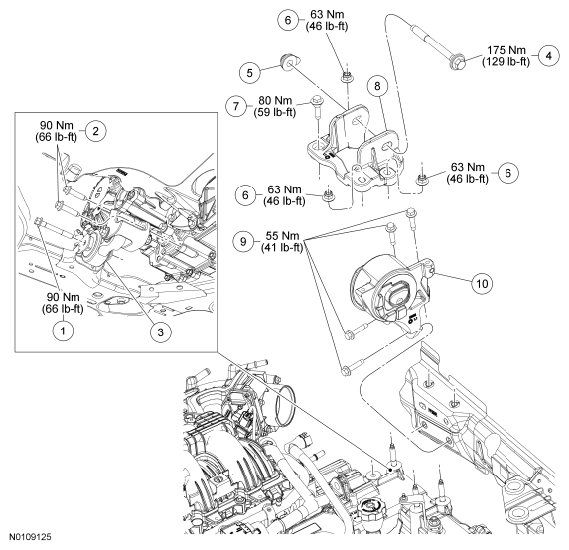

Fig 1: Transaxle Support Insulator Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	W706674	Roll restrictor-to-subframe through bolt
2	W713156	Roll restrictor bracket bolts
3	6P082	Roll restrictor assembly
4	W711873	Through bolt - transaxle support insulator
5	W711872	Flagnut - transaxle support insulator through bolt
6	W712334	Nuts - transaxle support insulator bracket
7	W712711	Bolt - transaxle support insulator bracket
8	6B033	Bracket - transaxle support insulator
9	W709234	Bolts - transaxle support insulator
10	6F020	Transaxle support insulator
