Pinpoint Test E: Manifold Absolute Pressure (MAP) Sensor: Introduction

This pinpoint test is intended to diagnose the following:

• Harness circuits: MAP, SIGRTN, and VREF
• MAP sensor
• Powertrain control module (PCM) (12A650)

Fig 1: Manifold Absolute Pressure (MAP) Sensor Connector

Courtesy of FORD MOTOR CO.

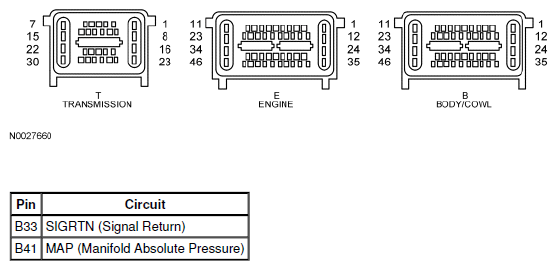

Fig 2: Powertrain Control Module (PCM) Connector

Courtesy of FORD MOTOR CO.

Reference values may vary by 0.3 volt depending on operating conditions, engine load, temperature, altitude, vehicle speed and other factors.
