Pinpoint Test AG: Accelerator Pedal Position (APP) Sensor: Introduction

NOTE: Base idle should not be less than 0.5 volt.

This pinpoint test is intended to diagnose the following:

Fig 1: Accelerator Pedal Position (APP) Sensor Connector
G06290815Courtesy of FORD MOTOR CO.

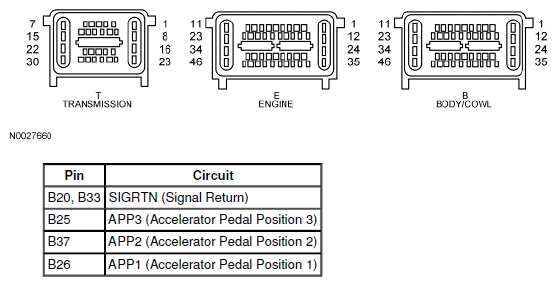

Fig 2: Powertrain Control Module (PCM) Connector
G06290816Courtesy of FORD MOTOR CO.
