Accessory Protocol Interface Module Connector - C2383

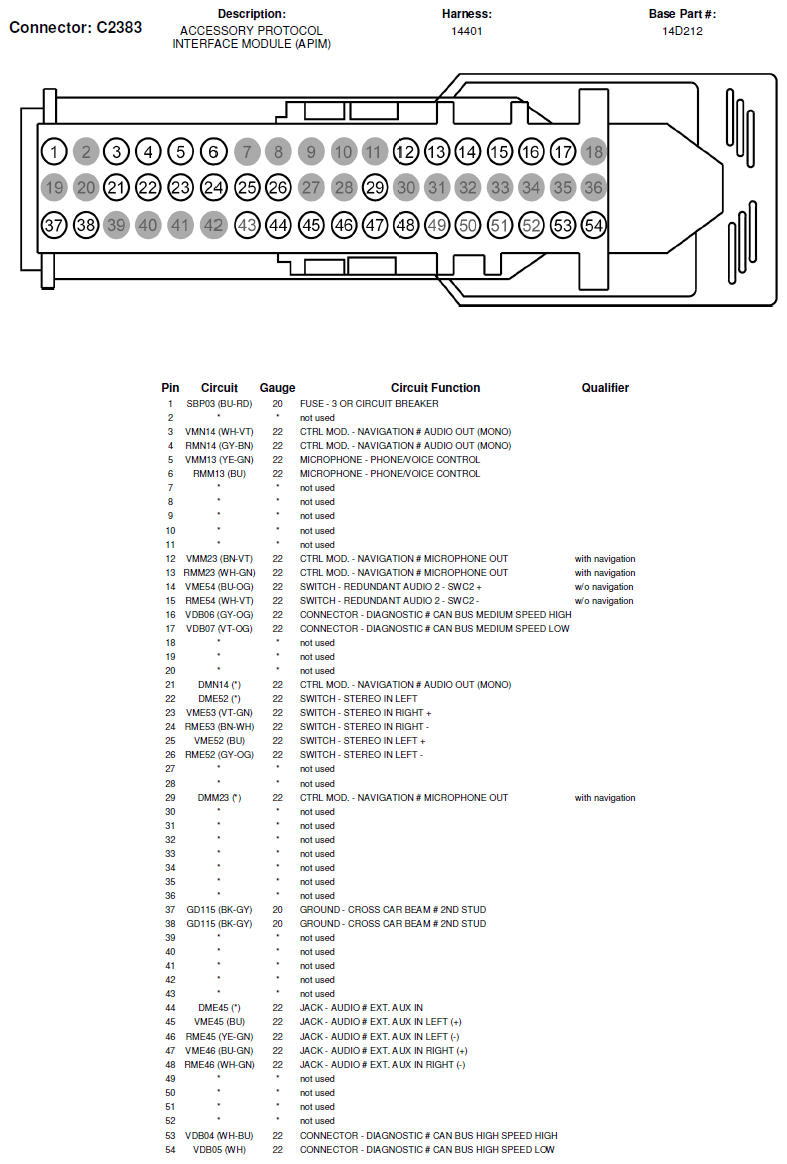

Fig 1: Accessory Protocol Interface Module Connector End View (C2383)

G06374829

Courtesy of FORD MOTOR CO.
