Accessory Protocol Interface Module Connector - C2298

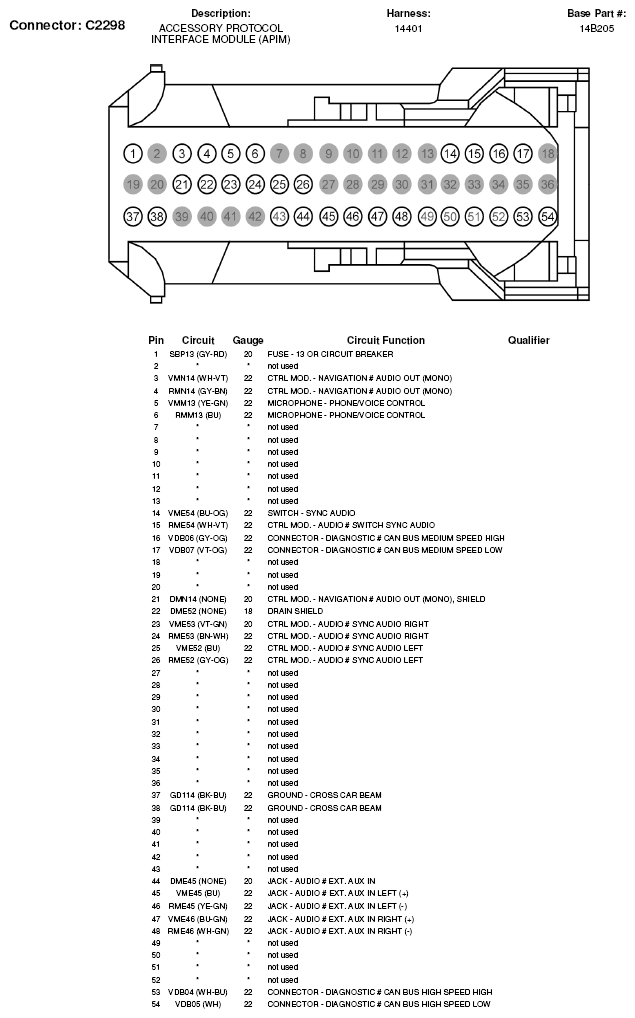

Fig 1: Accessory Protocol Interface Module Connector End View (C2298)

G06352888

Courtesy of FORD MOTOR CO.
