Seat - Exploded View, Third Row: Backrest

NOTE: LH shown in illustration, RH similar.

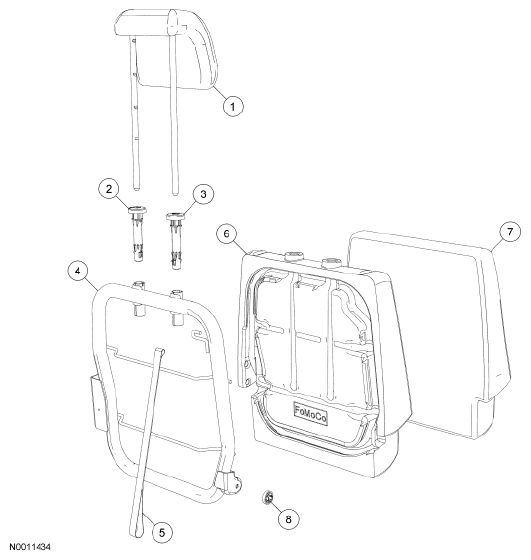

Fig 1: Exploded View Of Backrest

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	611A08	Head restraint assembly
2	610A16	Head restraint guide, master
3	610A16	Head restraint guide, slave
4	613A38	RH/613A39 LH Backrest frame
5	600A96	Pull strap
6	66800	RH/66801 LH Backrest foam pad
7	66601	Backrest trim cover
8	613B44	Bushing
