Traction Control Switch Connector - C280

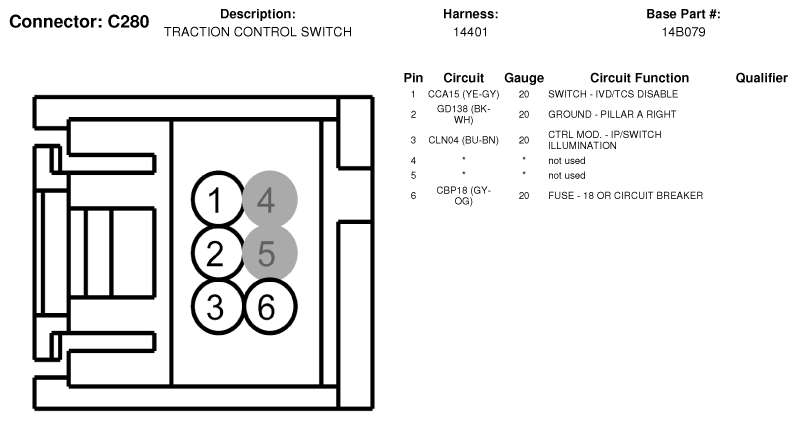

Fig 1: Traction Control Switch Connector End View (C280)

G06304449

Courtesy of FORD MOTOR CO.
