Rear Wiper Module Connector - C4323

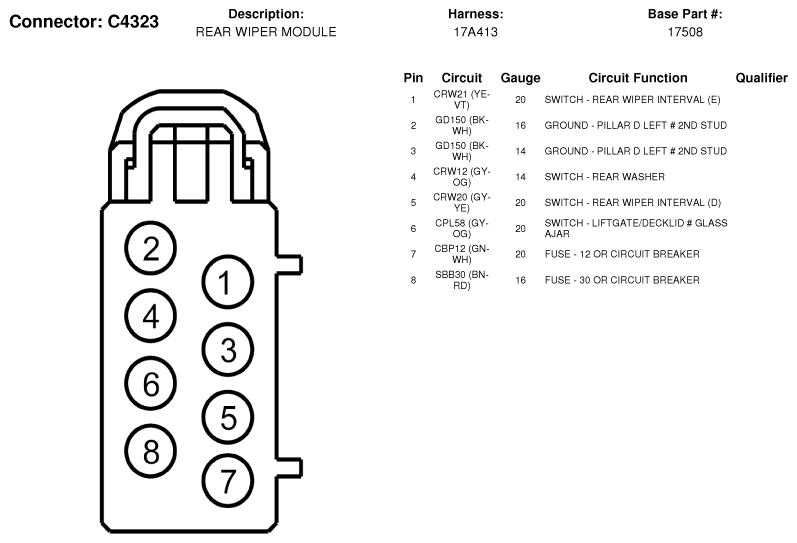

Fig 1: Rear Wiper Module Connector End View (C4323)

G06304723

Courtesy of FORD MOTOR CO.
