Rear Entertainment Module Connector - C9029

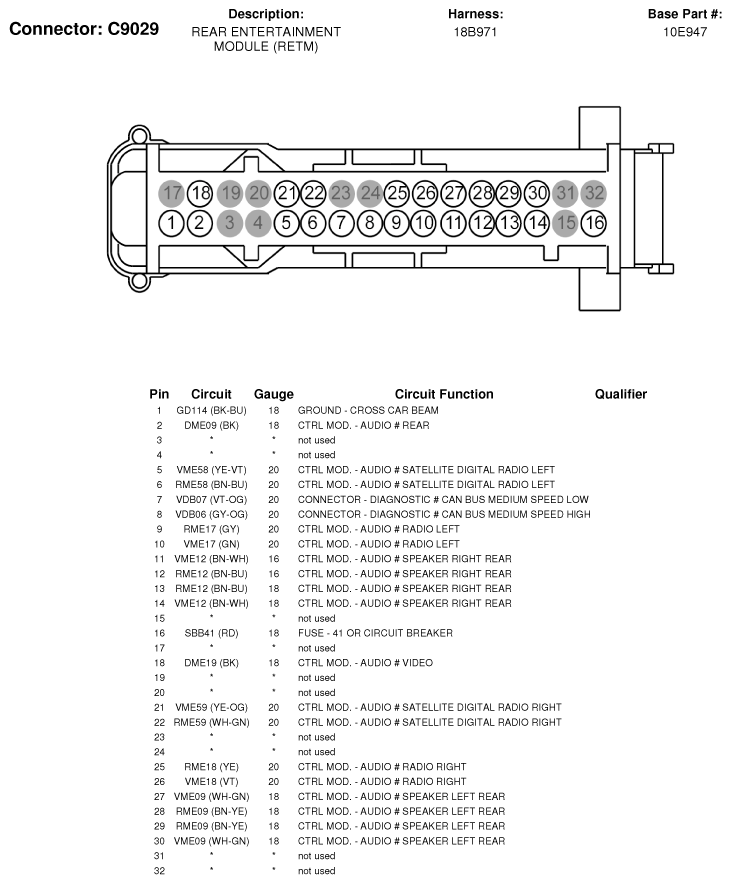

Fig 1: Rear Entertainment Module Connector End View (C9029)

G06304728

Courtesy of FORD MOTOR CO.
