Seat - Exploded View, Front

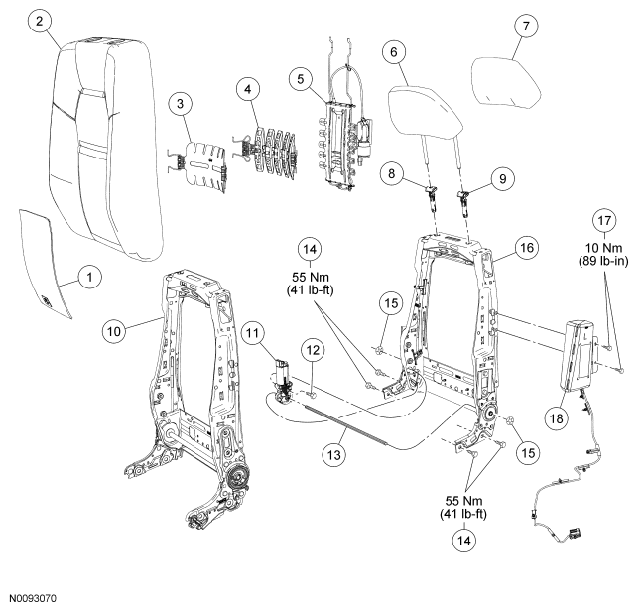

Front Seat Backrest
NOTE:
Driver backrest shown in illustration, passenger backrest similar.
PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 14D696 | Backrest heated seat mat (if equipped) |
| 2 | 64417/ | 64811 Backrest trim cover/backrest foam pad |
| 3 | 65500 | Static lumbar (if equipped) |
| 4 | 65500 | Manual lumbar adjust assembly (if equipped) |
| 5 | 65500 | Power lumbar adjust assembly (if equipped) |
| 6 | 611A08 | Head restraint assembly |
| 7 | - | Head restraint cover |
| 8 | 610A18 | Inboard head restraint guide sleeve |
| 9 | 610A16 | Outboard head restraint guide sleeve |
| 10 | 61018 | Backrest frame (serviced with manual recliners) (if equipped) |
| 11 | 14547 | Power recline motor (if equipped) |
| 12 | - | Screw (if equipped) (part of 600A58) |
| 13 | 62714 | Recliner shaft (if equipped) |
| 14 | - | Recliner-to-cushion frame bolts (4 required) (part of 600A58) |
| 15 | - | One-way push clips (2 required) (if equipped) (part of 14547) |
| 16 | 61018 | Backrest frame (serviced with power recliners) (if equipped) |
| 17 | - | Side air bag module bolts (2 required) |
| 18 | 611D11 | Side air bag module |

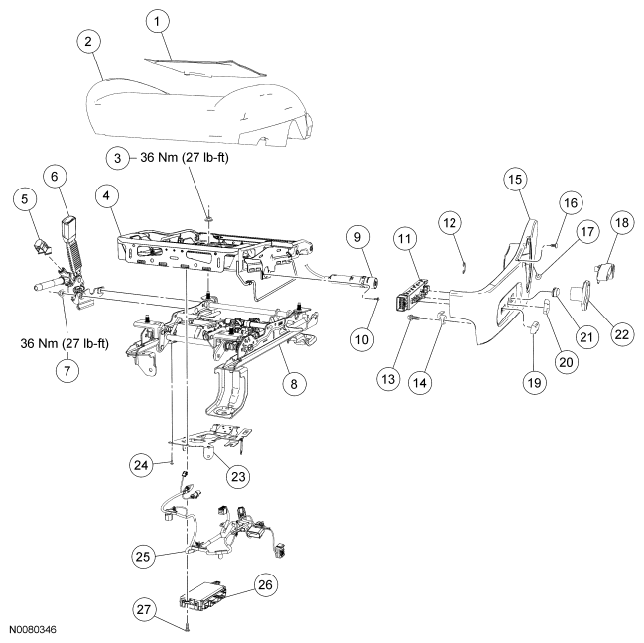

Driver Seat Cushion
NOTE:
Power seat track shown in illustration, manual seat track similar.
NOTE:
The retention bracket and screw can be used to repair cushion side shields that will not retain to the cushion frame wire.
PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Cushion heated seat mat (if equipped) |
| 2 | 62901/632A23 | Cushion trim cover/cushion foam pad |
| 3 | - | Cushion frame-to-seat-track nut (4 required) (part of 600A58) |
| 4 | 63100 | Cushion frame |
| 5 | - | Safety belt buckle and pretensioner electrical connector cover |
| 6 | 61203 | Safety belt buckle and pretensioner |
| 7 | - | Safety belt buckle and pretensioner nut (2 required) (part of 61203) |
| 8 | 61711 | Power seat track |
| 9 | 610C00 | Manual lumbar control (if equipped) |
| 10 | - | Manual lumbar control screw (2 required) (if equipped) (part of 600A58) |
| 11 | 14A701 | Seat control switch (if equipped) |
| 12 | - | Manual recline handle clip (if equipped) (part of 610A76) |
| 13 | W506943 | Retention bracket screw (if equipped) |
| 14 | 62256 | Retention bracket (if equipped) |
| 15 | 62187 | Cushion side shield |
| 16 | - | Scrivet (part of 600A58) |
| 17 | - | Pin-type retainer (part of 600A58) |
| 18 | 62622 | Manual recline handle (if equipped) |
| 19 | 14C715 | Seat control switch knob (if equipped) |
| 20 | 14711 | Power recline switch knob (if equipped) |
| 21 | 14711 | Power lumbar switch knob (if equipped) |
| 22 | 617B70 | Manual lumbar control knob (if equipped) |
| 23 | 14A163 | Bracket |
| 24 | - | Screw (4 required) (part of 600A58) |
| 25 | 14C719 | Driver seat wire harness |
| 26 | 14C708 | Driver Seat Module (DSM) (if equipped) |
| 27 | - | Screw (2 required) (if equipped) (part of 600A58) |

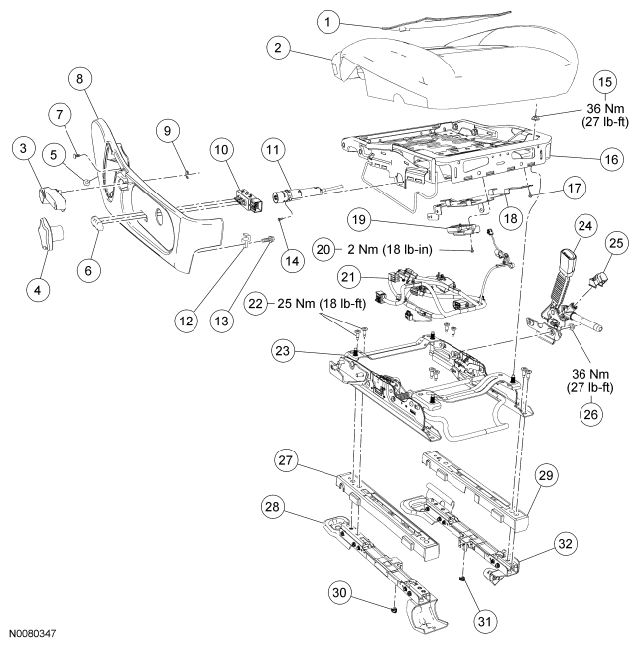

Passenger Seat Cushion
NOTE:
Manual seat track shown in illustration, power seat track similar.
NOTE:
The retention bracket and screw can be used to repair cushion side shields that will not retain to the cushion frame wire.
PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 14D698 | Cushion heated seat mat (if equipped) |
| 2 | 62900/632A22 | Cushion trim cover/cushion foam pad |
| 3 | 62622 | Manual recline handle (if equipped) |
| 4 | 617B70 | Manual lumbar control knob (if equipped) |
| 5 | - | Pin-type retainer (part of 600A58) |
| 6 | 14C715 | Seat control switch knob (if equipped) |
| 7 | - | Scrivet (part of 600A58) |
| 8 | 62186 | Cushion side shield |
| 9 | - | Manual recline handle clip (part of 610A76) (if equipped) |
| 10 | 14A701 | Seat control switch (if equipped) |
| 11 | 610C00 | Manual lumbar control (if equipped) |
| 12 | 62256 | Retention bracket (if equipped) |
| 13 | W506943 | Retention bracket screw (if equipped) |
| 14 | - | Manual lumbar control screw (2 required) (if equipped) (part of 600A58) |
| 15 | - | Cushion frame-to-seat-track nut (4 required) (part of 600A58) |
| 16 | 63100 | Cushion frame |
| 17 | - | Screw (4 required) (part of 600A58) |
| 18 | 14A163 | Bracket |
| 19 | 14B422 | Occupant Classification System Module (OCSM) |
| 20 | - | Screw, OCSM (2 required) (part of 600A58) |
| 21 | 14A699 | Passenger seat wire harness |
| 22 | - | Seat track-to-Occupant Classification Sensor (OCS) rail bolts (8 required) (part of 600A58) |
| 23 | 61710 | Manual seat track |
| 24 | 61202 | Safety belt buckle and pretensioner |
| 25 | - | Safety belt buckle and pretensioner electrical connector cover |
| 26 | - | Safety belt buckle and pretensioner nut (2 required) (part of 61203) |
| 27 | 62126 | Outboard OCS rail shield |
| 28 | 61708 | Outboard OCS rail |
| 29 | 62127 | Inboard OCS rail shield |
| 30 | - | Outboard OCS rail electrical connector (part of 14A699) |
| 31 | - | Inboard OCS rail electrical connector (part of 14A699) |
| 32 | 61709 | Inboard OCS rail |
- For additional information, refer to the appropriate procedure(s).
