Receiver Drier: Material
WARNING: This page is about a different car, the 2010 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL CHART
| Item |
Specification |
PAG Refrigerant Compressor Oil (R-134a Systems)
YN-12-D |
WSH-M1C231-B |

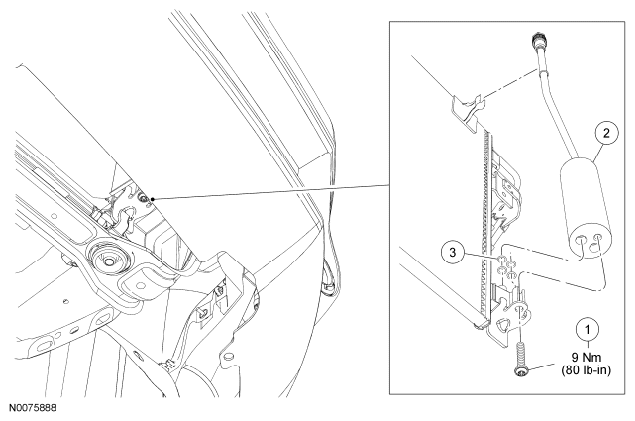

Courtesy of FORD MOTOR CO. PART DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
- |
Receiver/drier bolt (part of 19C836 kit) |
| 2 |
19C836 |
Receiver/drier |
| 3 |
- |
O-ring seal (4 required) (part of 19C836 kit) |
