Three Speed Fan Operation

Although the PCM output circuits are called low, medium, and high fan control (FC), cooling fan operation is controlled by a combination of these outputs.

Refer to ENGINE CONTROL COMPONENTS for system information.

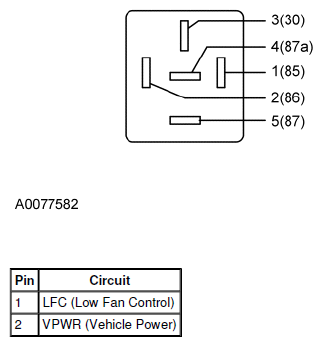

Fig 1: Low Fan Control (LFC) Relay Connector

Courtesy of FORD MOTOR CO.

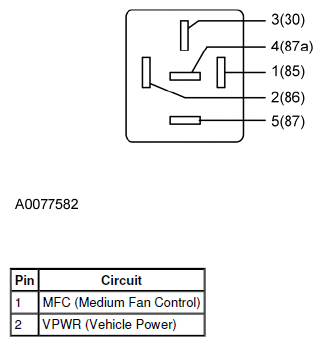

Fig 2: Medium Fan Control (MFC) Relay Connector

Courtesy of FORD MOTOR CO.

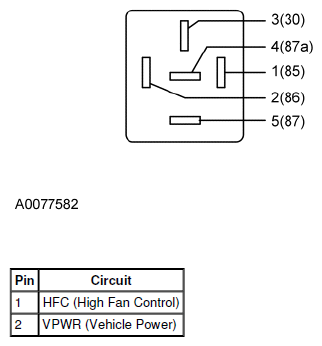

Fig 3: High Fan Control (HFC) Relay Connector

Courtesy of FORD MOTOR CO.

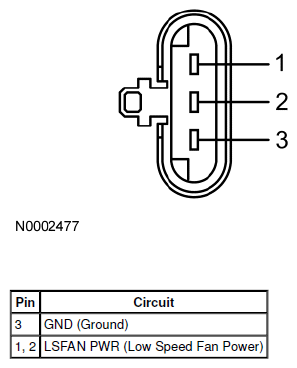

Fig 4: Left Fan Motor Connector

Courtesy of FORD MOTOR CO.

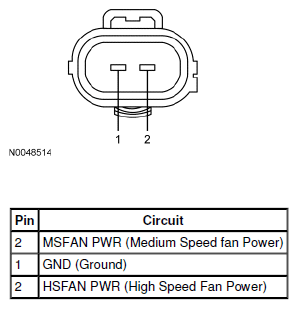

Fig 5: Right Fan Motor Connector

Courtesy of FORD MOTOR CO.

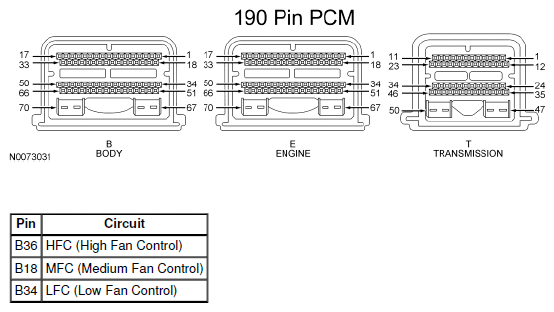

Fig 6: Powertrain Control Module (PCM) Connector

Courtesy of FORD MOTOR CO.
