Transaxle Filler Tube: Notes

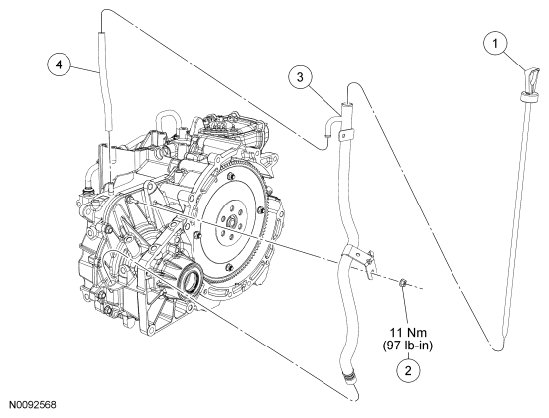

Fig 1: Transmission Fluid Level Indicator, Transaxle Filler Tube Nut, Transaxle Filler Tube And Transaxle Vent Hose With Torque Specifications
PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 7A020 | Transmission fluid level indicator |
| 2 | W520101 | Transaxle filler tube nut |
| 3 | 7A228 | Transaxle filler tube |
| 4 | - | Transaxle vent hose |
