Special Tool(s)
SPECIAL TOOL
| Oil Pan Holding Fixture 303-1295 |

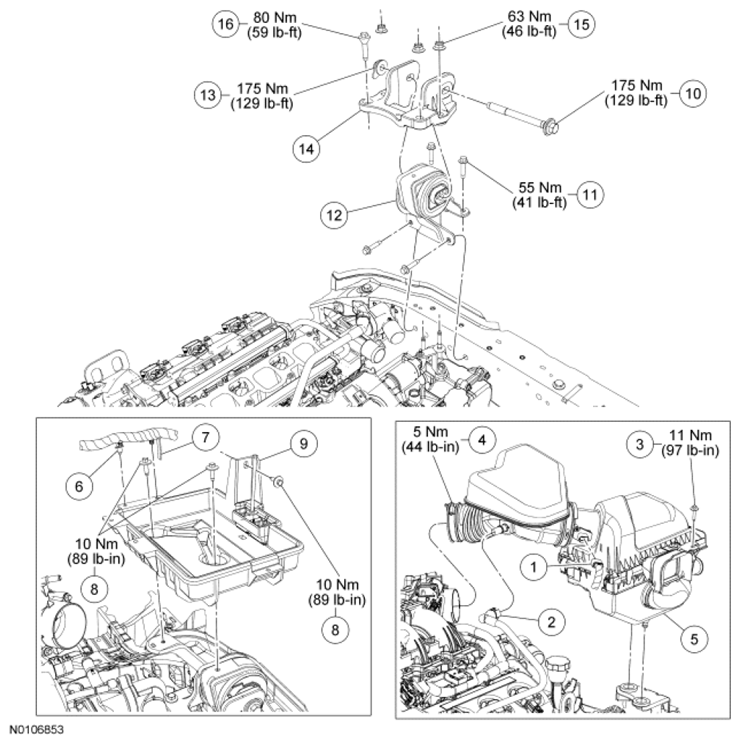

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Electrical connector - Mass Air Flow (MAF) sensor |
| 2 | 6758 | Tube assembly - crankcase vent |
| 3 | N606678 | Bolt - Air Cleaner (ACL) bracket |
| 4 | 9C632 | Clamp - ACL outlet pipe |
| 5 | 9C662 | ACL assembly |
| 6 | 13A506 | Fastener - wiring harness |
| 7 | 13A506 | Fastener - wiring harness |
| 8 | W503924 | Bolts - battery tray |
| 9 | 10723 | Battery tray |
| 10 | W711873 | Through bolt - transaxle support insulator |
| 11 | W709234 | Bolt - transaxle support insulator (4 required) |
| 12 | 6F020 | Transaxle support insulator |
| 13 | W711872 | Flag nut |
| 14 | 8070 | Transaxle support insulator bracket |
| 15 | W712334-S | Transaxle support insulator bracket nuts |
| 16 | W712711-S | Transaxle support insulator bracket bolt |
