Positive Crankcase Ventilation (PCV) System Components

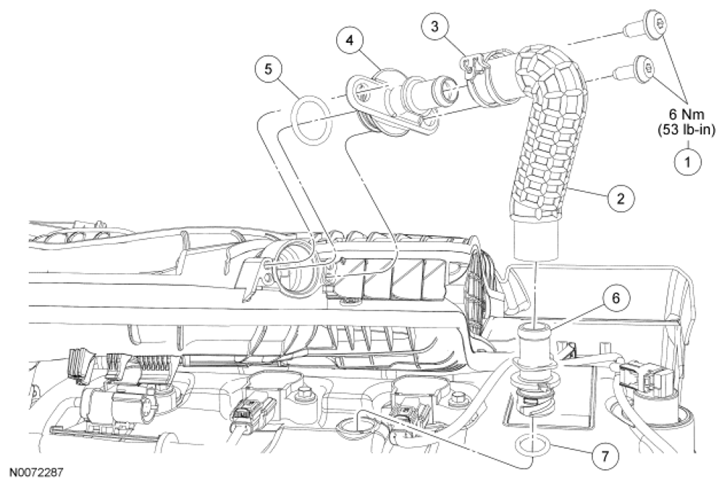

Fig 1: Positive Crankcase Ventilation (PCV) System Replacement Components With Torque Specifications
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | PCV fitting screws (2 required) |
| 2 | 6K817 | Crankcase ventilation tube |
| 3 | - | Crankcase ventilation tube spring clamp (part of 6K817) |
| 4 | 9F695 | PCV fitting |
| 5 | 9J469 | PCV fitting O-ring seal |
| 6 | 6A666 | PCV valve |
| 7 | - | PCV valve O-ring seal (part of 6A666) |
- For additional information, refer to the appropriate procedure(s).
