Fuel Lines: Notes

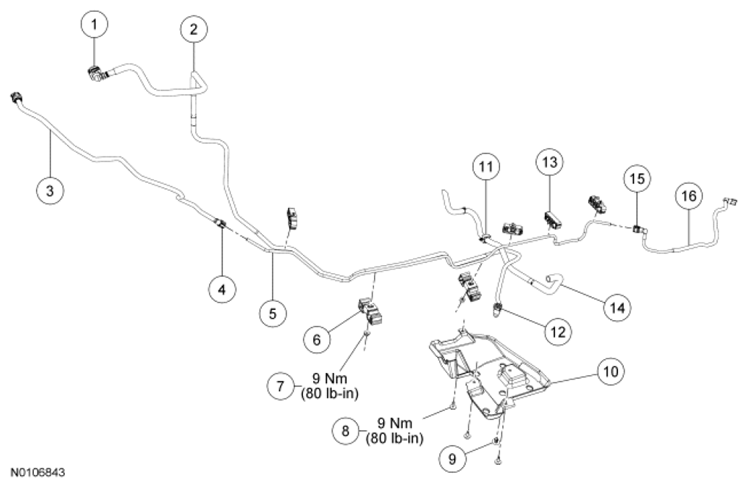

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Fuel vapor tube-to-Evaporative Emission (EVAP) canister purge valve quick connect coupling (part of 9S284) |
| 2 | 9S284 | Fuel vapor tube |
| 3 | 9J280 | Fuel jumper tube |
| 4 | - | Fuel jumper tube-to-fuel tube quick connect coupling (part of 9J280) |
| 5 | 9S284 | Fuel tube |
| 6 | 9F931 | Bundle retainer clip (2 required) |
| 7 | W707137 | Bundle retainer clip nut (2 required) |
| 8 | W710330 | EVAP canister shield bolt (3 required) |
| 9 | W705681 | EVAP canister shield pin-type retainer |
| 10 | 9H296 | EVAP canister shield |
| 11 | - | Fresh air tube retainer (part of 9S327) |
| 12 | - | Fuel vapor tube-to- EVAP canister quick connect coupling (part of 9S284) |
| 13 | 9F931 | Bundle retainer clip (4 required) |
| 14 | 9S327 | Fresh air tube |
| 15 | - | Fuel tank jumper tube-to-fuel tube quick connect coupling (part of 9324) |
| 16 | 9324 | Fuel tank jumper tube |
