Removal and Installation

  1. Remove the LH instrument panel trim panel in the following sequence:
    1. Pull out to release the retaining clips.
    2. Disconnect the satbility/traction contol switch electrical connector.
    3. If equipped, disconnect the adjustable pedal switch electrical connector.
  2. Depress the 2 tabs and remove stability/traction control switch from the LH instrument panel trim panel.

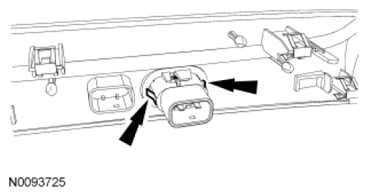

    Fig 1: Locating Stability/Traction Control Switch Tabs
    G06563952Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
