Intake Manifold Running Control Connector - C191

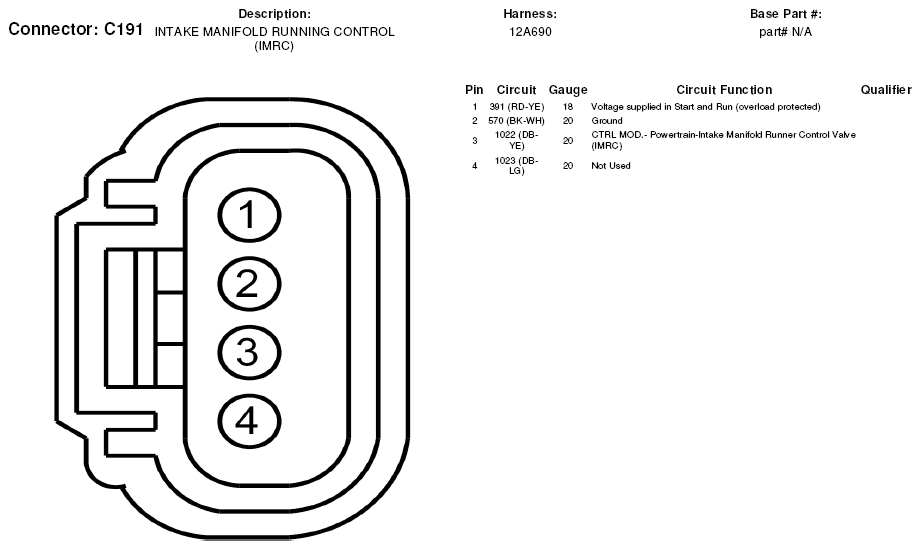

Fig 1: Intake Manifold Running Control Connector End View (C191)

G05602808

Courtesy of FORD MOTOR CO.
