Front Brake Caliper Anchor Plate: Notes

WARNING: This page is about a different car, the 2008 Mercury Milan, 2008 Lincoln MKZ, and 2008 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

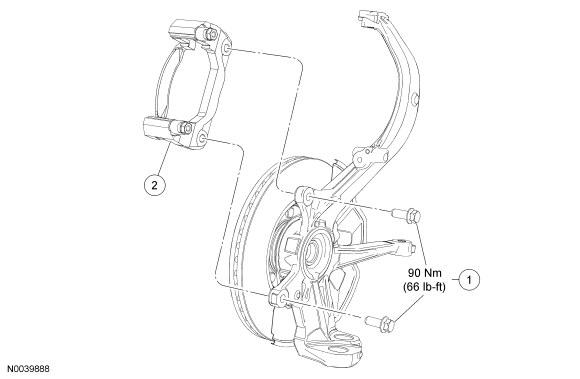

Fig 1: Exploded View Of Brake Caliper Anchor Plate With Torque Specification
GF0029581Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W711241 Brake caliper anchor plate bolts (2 required)
2 - Brake caliper anchor plate (part of 2B120)
