Secondary Air Injection System (AIR) Components - Exploded View

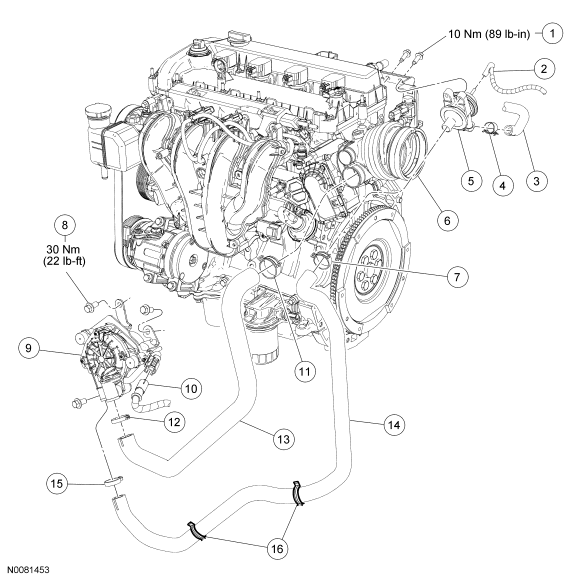

Fig 1: Exploded View Of Secondary Air Injection System (AIR) Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W500223	Secondary Air Injection (AIR) valve bolt (2 required)
2	9E499	AIR valve vacuum tube
3	9B466	AIR valve-to-exhaust manifold hose
4	W525857	AIR valve hose clamp
5	9F491	AIR valve
6	9F805	Air cleaner outlet pipe
7	-	AIR pump hose clamp (part of 9S477)
8	W500032	AIR pump bolt (3 required)
9	9A486	AIR pump
10	14A624	AIR pump electrical connector
11	-	AIR pump hose clamp (part of 9B458)
12	-	AIR pump hose clamp (part of 9B458)
13	9B458	AIR pump-to-air cleaner outlet pipe
14	9S477	AIR pump-to-AIR valve hose
15	-	AIR pump hose clamp (part of 9S477)
16	-	Wire harness retainer clips (part of 12B637)

1. For additional information, refer to the procedures.
