Data Link Connector - C251

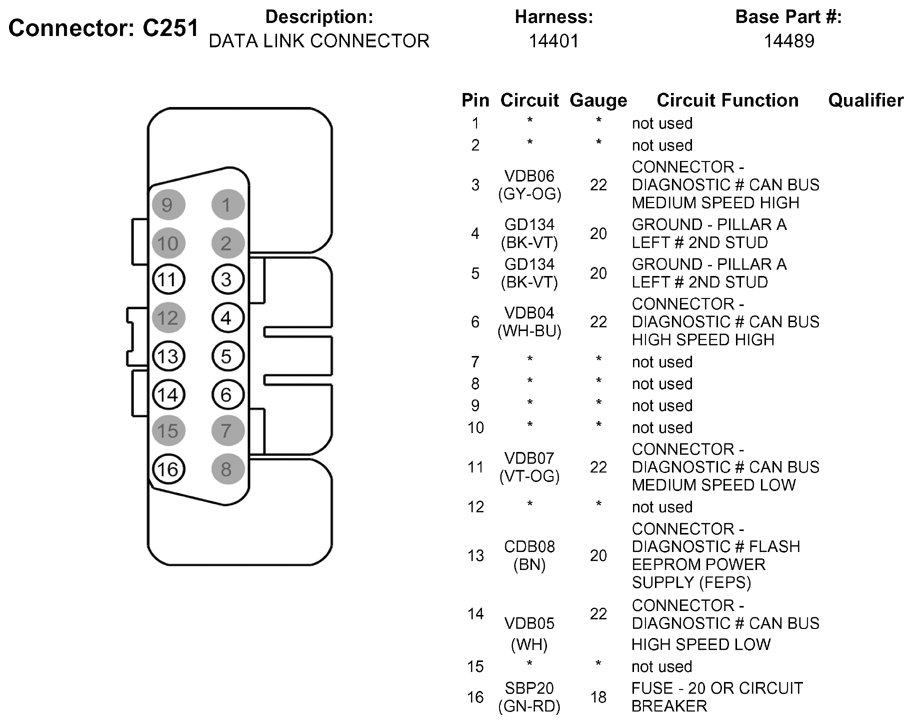

Fig 1: Data Link Connector End View (C251)

G05791063

Courtesy of FORD MOTOR CO.
