Power Steering Fluid Cooler: Notes

Material

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V

NOTE: 4.0L Engine Shown, 4.6L Engine Similar.

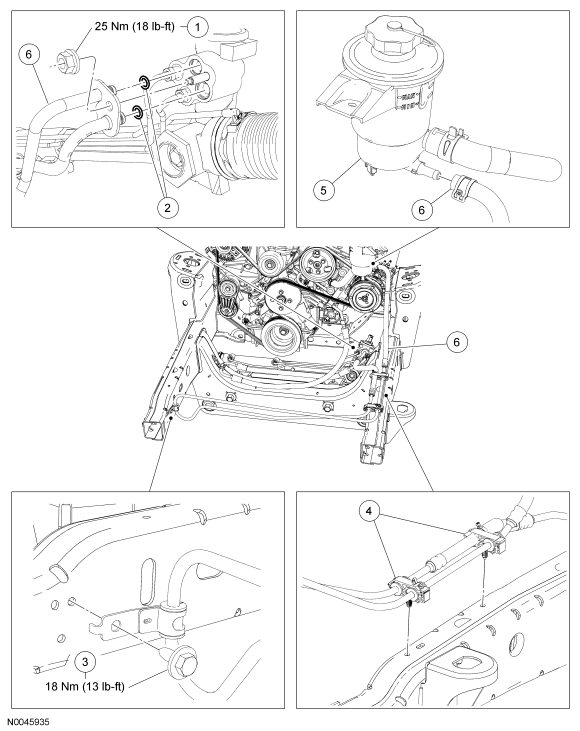

Fig 1: Exploded View Of Power Steering Fluid Cooler With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W520143	Steering line clamp plate nut
2	N803257	O-ring seals (2 required)
3	W710617	Power steering fluid cooler hose bracket bolt
4	-	Power steering fluid cooler hose braces (2 required)
5	3R700	Power steering fluid reservoir
6	3D746	Power steering fluid cooler
