Rear Wiper Module Connector - C4323

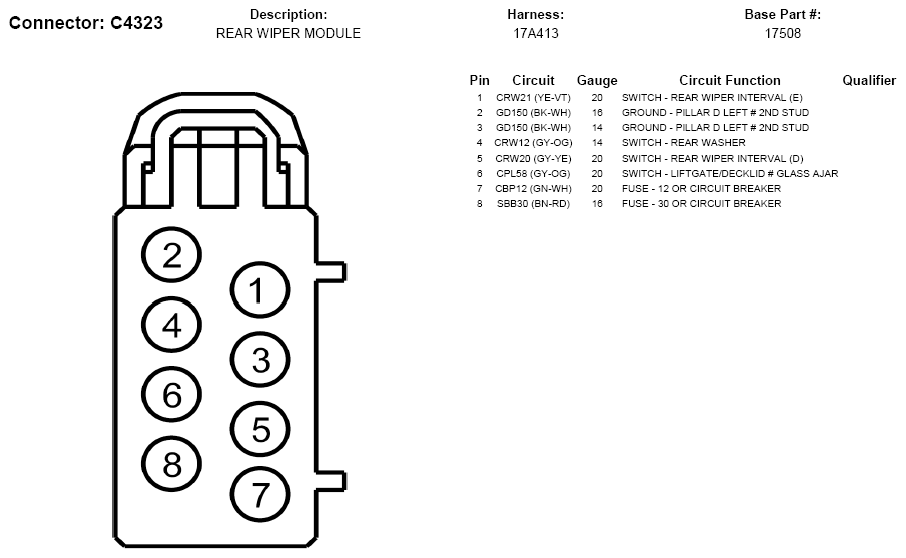

Fig 1: Rear Wiper Module Connector End View (C4323)

G05788052

Courtesy of FORD MOTOR CO.
