Overhead Console Switch Assembly Connector - C912

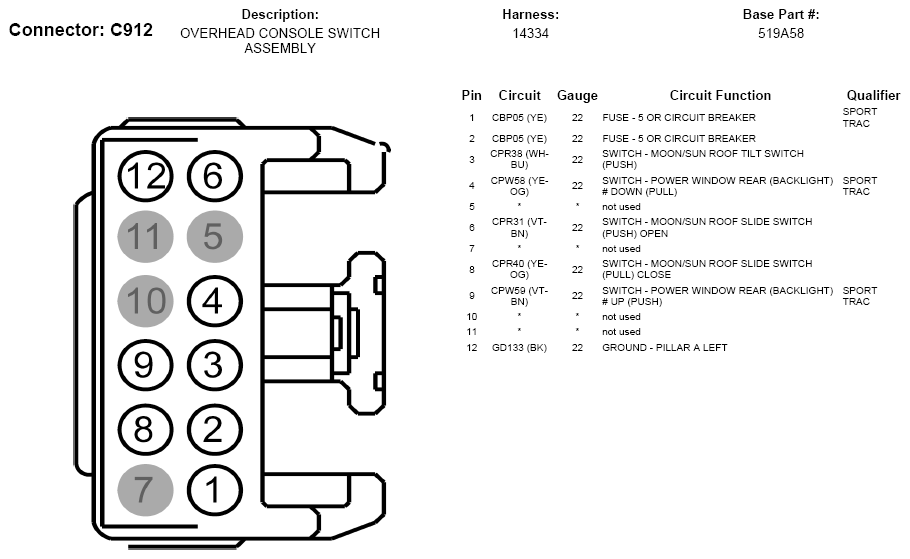

Fig 1: Overhead Console Switch Assembly Connector End View (C912)

G05787907

Courtesy of FORD MOTOR CO.
