Front Control Interface Module Connector End View (C2402)

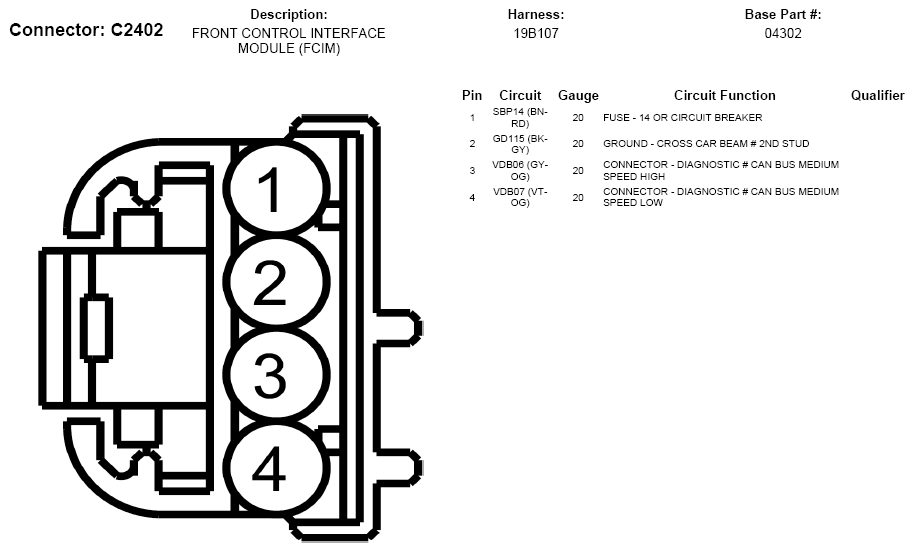

Fig 1: Front Control Interface Module Connector End View (C2402)

G05747917

Courtesy of FORD MOTOR CO.
