Manual Transaxle: Notes
The manual transaxle is a fully synchronized 5-speed transaxle. The forward gears are selected by a synchronizer mechanism. The 3rd gear, 4th gear and 5th speed cluster gear are mounted on the input shaft. First gear and 2nd gear are mounted on the mainshaft. The helical-cut forward gears are in constant mesh with the corresponding gears on the opposing shaft. The manual transaxle features a synchronized reverse gear. The reverse gears have helical-cut teeth and are engaged through a synchronizer.

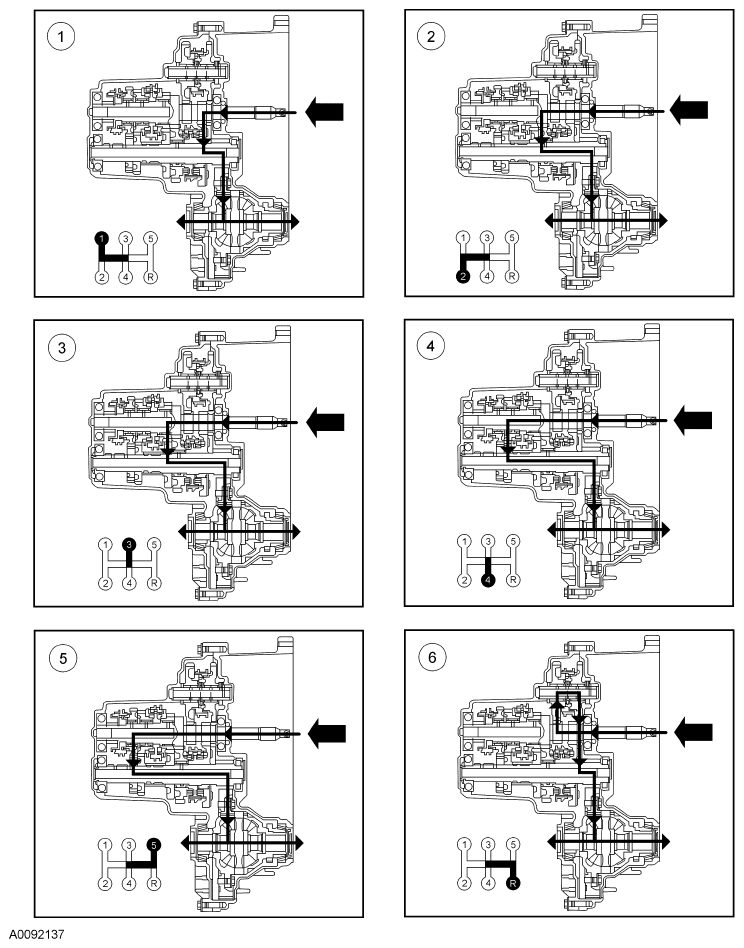

Power Flow
ITEM DESCRIPTION
| Item | Description |
|---|---|
| 1 | 1st gear |
| 2 | 2nd gear |
| 3 | 3rd gear |
| 4 | 4th gear |
| 5 | 5th gear |
| 6 | Reverse gear |
