Safety Belt Shoulder Height Adjuster: Notes

NOTE: RH side shown, LH similar.

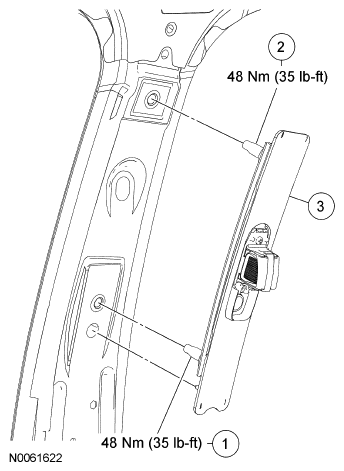

Fig 1: Safety Belt Shoulder Height Adjuster With Torque Specifications

Courtesy of FORD MOTOR CO.

PART DESCRIPTION CHART

Item	Part Number	Description
1	-	Safety belt shoulder height adjuster lower bolt (part of 602B82)
2	-	Safety belt shoulder height adjuster upper bolt (part of 602B82)
3	602B82	Safety belt shoulder height adjuster
