Safety Belt Buckle - Rear: Notes

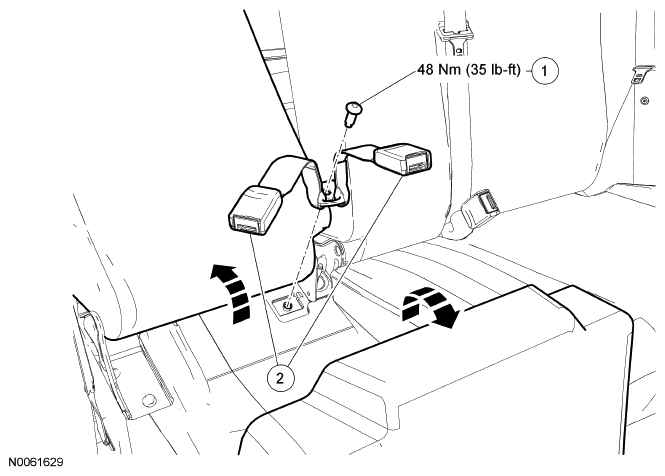

Fig 1: Exploded View Of Safety Belt Buckle - Rear
G06099988Courtesy of FORD MOTOR CO.
PART DESCRIPTION CHART

Item Part Number Description
1 - Rear center and RH safety belt buckle bolt (part of 60044)
2 60044 Rear center and RH safety belt buckles
