Removal And Installation
NOTE:
Edge shown, MKX similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 13D730 | Stability/traction control switch |
| 2 | 7804302 | Instrument panel center finish panel |
- Turn the ignition OFF and wait at least one minute.
- Remove the instrument panel center finish panel. For additional information, refer to INSTRUMENT PANEL & CONSOLE article.
- Depress the 4 tabs and remove the stability/traction control switch from the instrument panel center finish panel.
- To install, reverse the removal procedure.
NOTE:
The ignition switch must be in the OFF position if disconnecting the Passenger Air Bag Deactivation (PAD) indicator electrical connector. Otherwise, a DTC will be set in the Restraints Control Module (RCM) memory and must be cleared before releasing the vehicle.

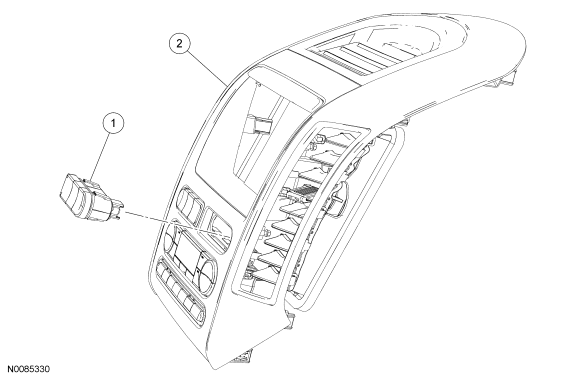

Fig 2: Depressing Tabs & Removing Stability/Traction Control Switch From Instrument Panel Center Finish Panel
