Exhaust System, 6.0L Diesel Engine
WARNING: This page is about a different car, the 2009 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Vehicle body removed from art for clarity.

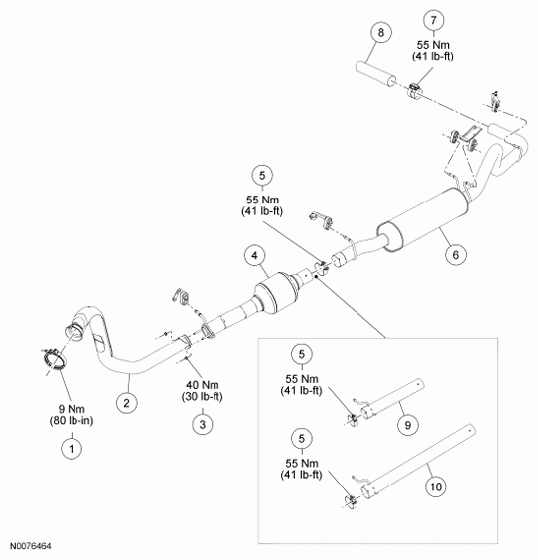

PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 5A231 | Turbocharger-to-exhaust downpipe clamp |
| 2 | 6N646 | Exhaust downpipe |
| 3 | N620482 | Exhaust downpipe-to-converter nut (2 required) |
| 4 | 5E212 | Catalytic converter |
| 5 | 5A281 | Torca® clamps |
| 6 | 5230 | Muffler and tail pipe assembly |
| 7 | 5A281 | Torca® clamp |
| 8 | 5F238 | Tail pipe extension (if equipped) |
| 9 | 5A212 | Extension pipe (158-in wheelbase) |
| 10 | 5A212 | Extension pipe (176-in wheelbase) |
- For additional information, refer to the appropriate procedures.
