Sunload Sensor Connector (C286)

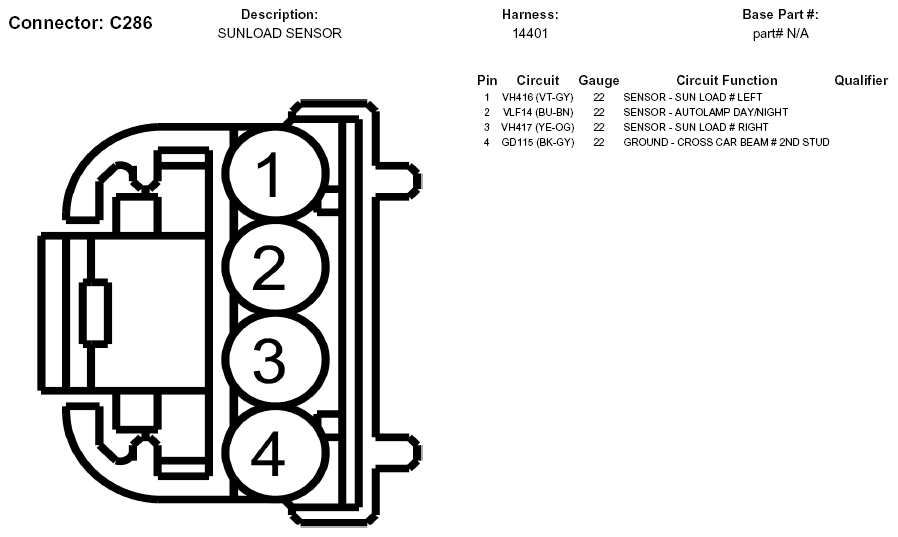

Fig 1: Sunload Sensor Connector End View (C286)

G05746962

Courtesy of FORD MOTOR CO.
