Power Liftgate Release Switch Connector (C2269)

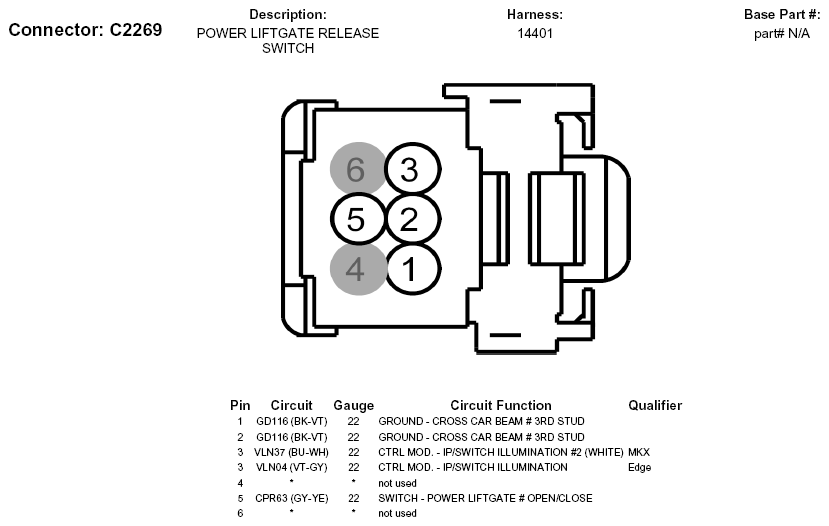

Fig 1: Power Liftgate Release Switch Connector End View (C2269)

G05747106

Courtesy of FORD MOTOR CO.
