Passenger Side Front Heated Seat Module Connector (C329)

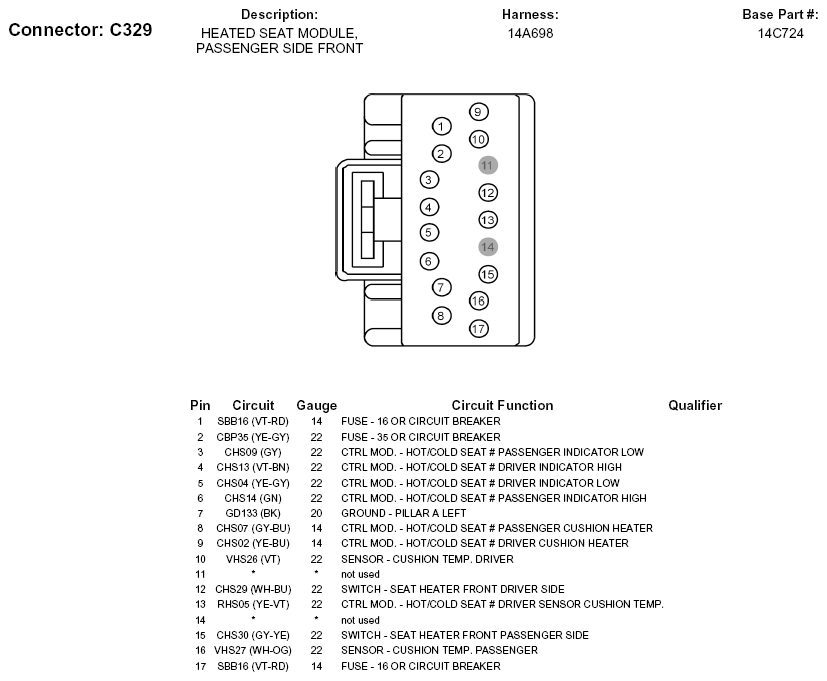

Fig 1: Passenger Side Front Heated Seat Module Connector End View (C329)

G05746981

Courtesy of FORD MOTOR CO.
