Passenger Side Climate Controlled Seat Back Rest Module Connector (C3326)

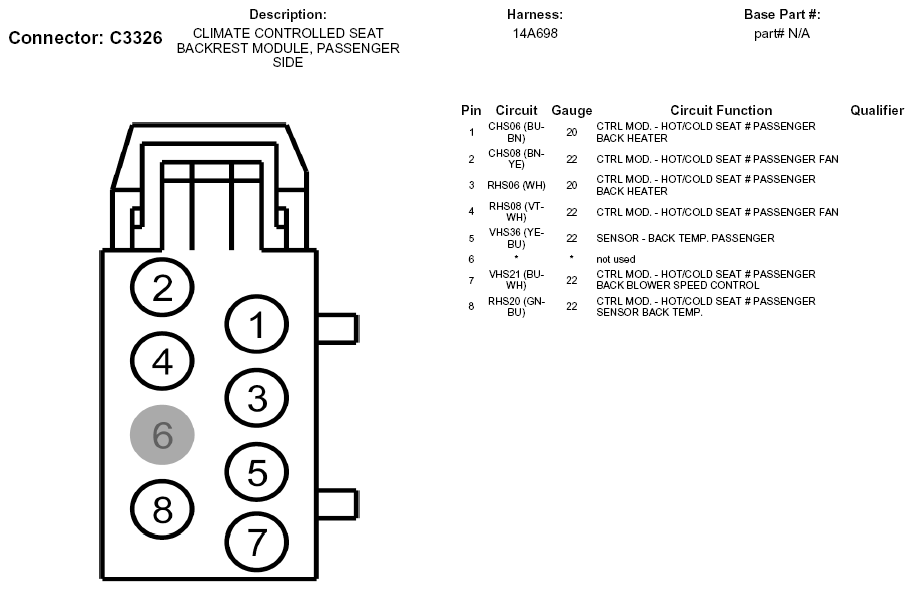

Fig 1: Passenger Side Climate Controlled Seat Back Rest Module Connector End View (C3326)

G05747168

Courtesy of FORD MOTOR CO.
