Passenger Safety Canopy Module Connector (C9019)

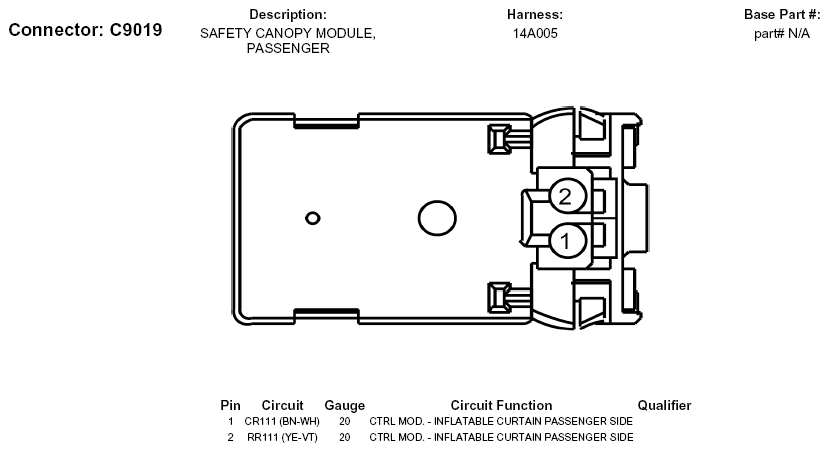

Fig 1: Passenger Safety Canopy Module Connector End View (C9019)

G05747222

Courtesy of FORD MOTOR CO.
