Parking Aid Module Connector (C4014)

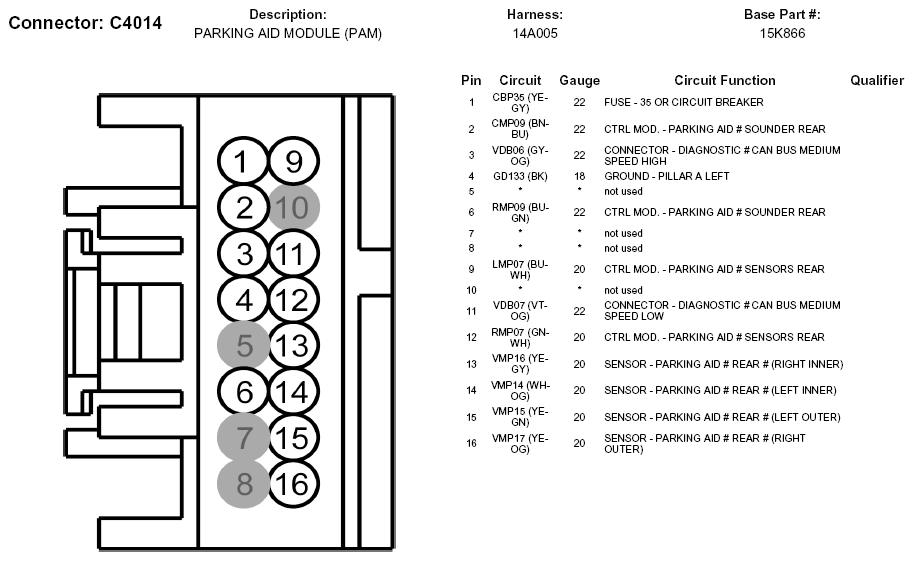

Fig 1: Parking Aid Module Connector End View (C4014)

G05747188

Courtesy of FORD MOTOR CO.
