Message Center Switch Connector (C253)

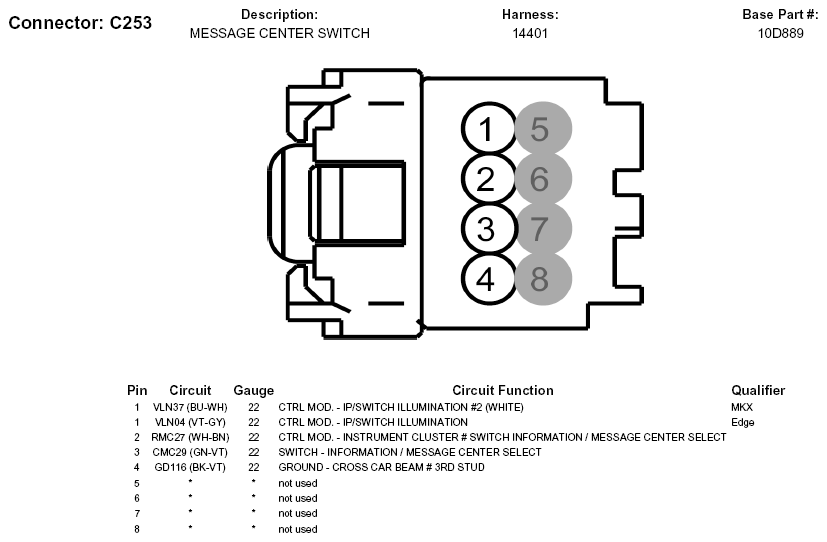

Fig 1: Message Center Switch Connector End View (C253)

G05746953

Courtesy of FORD MOTOR CO.
