Liftgate Rear Control Switch Connector (C4333)

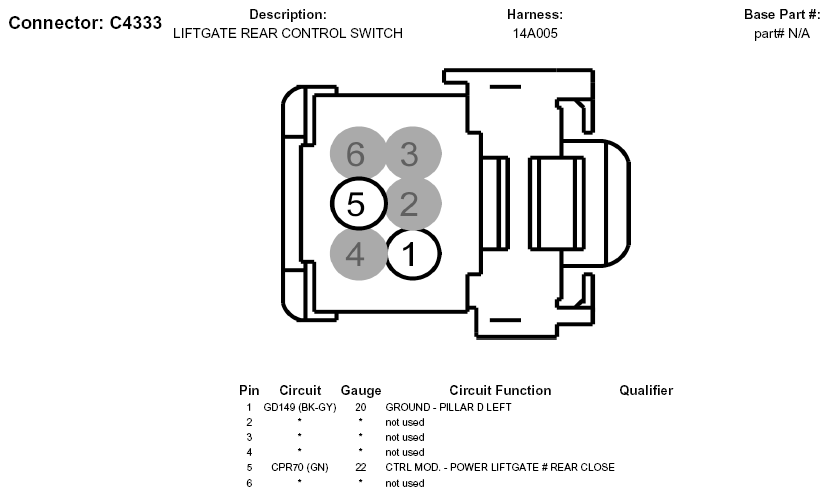

Fig 1: Liftgate Rear Control Switch Connector End View (C4333)

G05747203

Courtesy of FORD MOTOR CO.
