Fuel Injection Control Pressure (ICP) Sensor: Notes

WARNING: This page is about a different car, the 2009 Ford RV Cutaway, 2009 Ford Econoline, 2009 Ford E450 Super Duty, and 2009 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

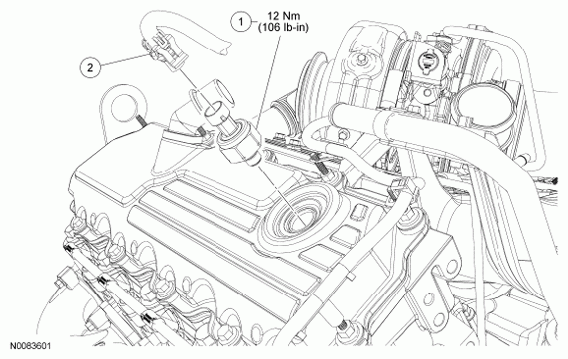

Fig 1: Fuel Injection Control Pressure (ICP) Sensor With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	9F838	Injection Control Pressure (ICP) sensor
2	14A464	Fuel ICP electrical connector (part of 12B637)
