Side Air Bag Module - With Fold Flat: Notes
WARNING: This page is about a different car, the 2009 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.

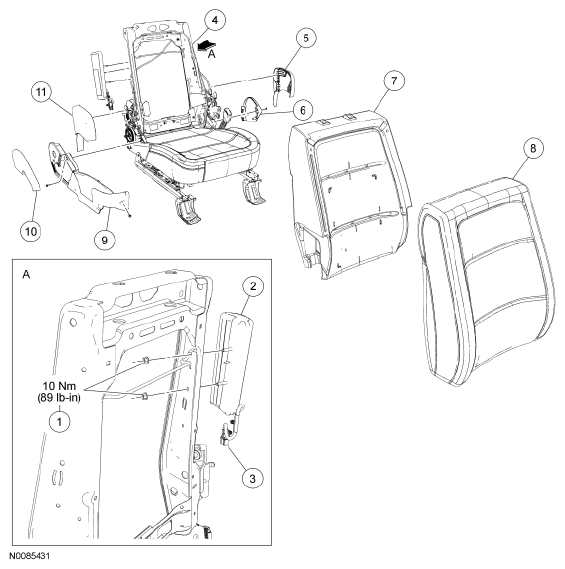

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W520111 | Side air bag module nuts (2 required) |
| 2 | 611D10 | Side air bag module |
| 3 | - | Side air bag module electrical connector (part of 611D10) |
| 4 | - | Seat backrest frame |
| 5 | 62187 | Upper inboard recliner cover |
| 6 | 62187 | Lower inboard recliner cover |
| 7 | 64810 | Seat backrest foam pad |
| 8 | 64416 | Seat backrest trim cover |
| 9 | 62186 | Seat cushion side shield |
| 10 | 61736 | Manual recline handle (if equipped) |
| 11 | 62186 | Outboard recliner cover |
