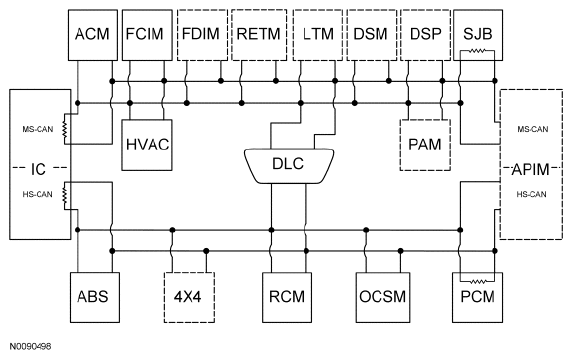

Network Topology
WARNING: This page is about a different car, the 2009 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.
MODULE NETWORK CONDITION CHART
| Module Name | Network Type | Termination Module |
|---|---|---|
| 4X4 control module (if equipped) | HS-CAN | No |
| ABS module | HS-CAN | No |
| Accessory Protocol Interface Module (APIM) (if equipped) | HS-CAN | No |
| MS-CAN | No | |
| Audio Control Module (ACM) | MS-CAN | No |
| Audio Digital Signal Processing (DSP) module | MS-CAN | No |
| Front Controls Interface Module (FCIM) | MS-CAN | No |
| Front Display Interface Module (FDIM) | MS-CAN | No |
| HVAC module | MS-CAN | No |
| Instrument Cluster (IC) (gateway module) | HS-CAN | Yes |
| MS-CAN | Yes | |
| Liftgate/Trunk Module (LTM) | MS-CAN | No |
| Occupant Classification System Module (OCSM) | HS-CAN | No |
| Parking Aid Module (PAM) | MS-CAN | No |
| PCM | HS-CAN | Yes |
| Rear Entertainment Module (RETM) | MS-CAN | No |
| Restraints Control Module (RCM) | HS-CAN | No |
| Smart Junction Box (SJB) | MS-CAN | Yes |
