Front Suspension - Exploded View
WARNING: This page is about a different car, the 2009 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.

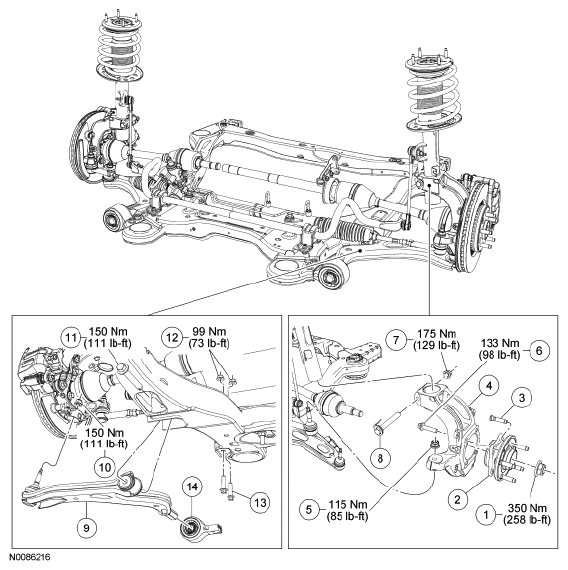

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W705967 | Wheel hub nut |
| 2 | 2C300 | Wheel bearing and wheel hub |
| 3 | 1107 | Wheel stud (5 required) (also part of 1104) |
| 4 | 3K171 LH/ 3K170 RH | Wheel knuckle |
| 5 | W710015 | Tie-rod end nut |
| 6 | W714331 | Wheel bearing and wheel hub bolt (4 required) |
| 7 | W710015 | Strut-to-wheel knuckle nut |
| 8 | W710396 | Strut-to-wheel knuckle flag bolt |
| 9 | 3051 LH/ 3042 RH | Lower control arm |
| 10 | W710015 | Lower ball joint nut |
| 11 | W710174 | Lower arm forward bolt |
| 12 | W520515 | Lower arm rearward nuts (2 required) |
| 13 | W7 08848 | Lower arm rearward bolt (2 required) |
| 14 | 3C339 LH/ 3C403 RH | Lower arm rearward bushing |

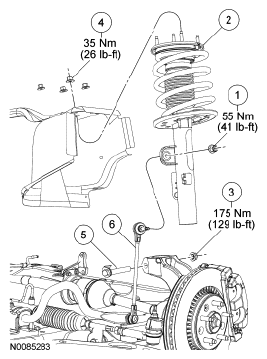

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W713760 | Stabilizer bar link upper nut |
| 2 | 5B420 | Strut and spring assembly |
| 3 | W710015 | Strut-to-wheel knuckle nut |
| 4 | W7 04790 | Strut upper mount nut (4 required) |
| 5 | W710396 | Strut-to-wheel knuckle flag bolt |
| 6 | 3B439 LH/ 3B438 RH | Stabilizer bar link |

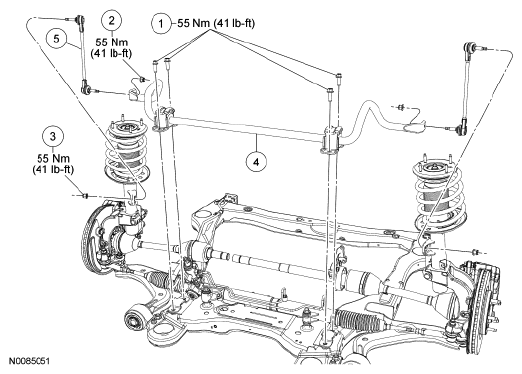

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W713692 | Stabilizer bar bracket bolts (4 required) |
| 2 | W520213 | Stabilizer bar link lower nut (2 required) |
| 3 | W520213 | Stabilizer bar link upper nut (2 required) |
| 4 | 5482 | Stabilizer bar assembly |
- For additional information, refer to the procedures in this article.
