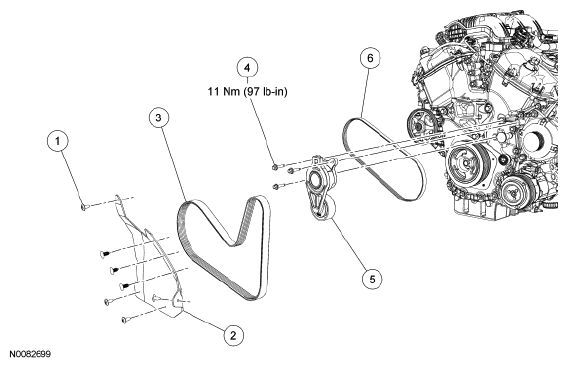

Front End Accessory Drive (FEAD) - Exploded View
WARNING: This page is about a different car, the 2009 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.
PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | N705589 | Pin-type retainer (7 required) |
| 2 | - | RH splash shield (part of 16102) |
| 3 | 8620 | Accessory drive belt |
| 4 | W503278 | Accessory drive belt tensioner bolt (3 required) |
| 5 | 6B209 | Accessory drive belt tensioner |
| 6 | 8620 | Power steering pump drive belt |
- For additional information, refer to the appropriate procedure.
