Console - Front, Floor: Notes
WARNING: This page is about a different car, the 2009 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.

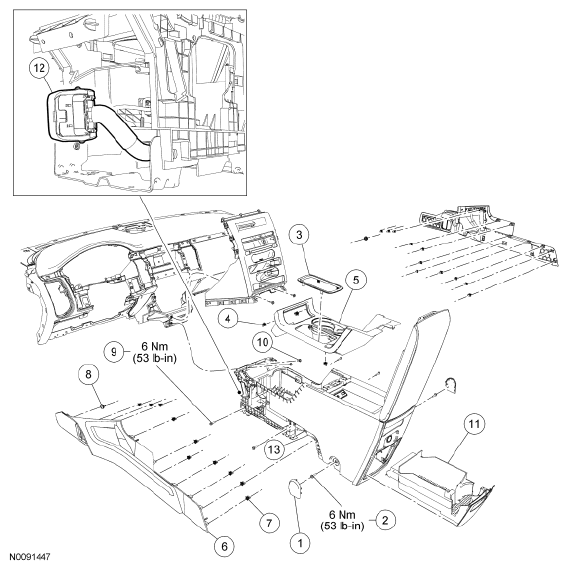

REMOVAL AND INSTALLATION
| Item | Part Number | Description |
|---|---|---|
| 1 | 672A40 | Floor console rear lower bolt cover |
| 2 | W505424 | Front floor console rear lower bolt (2 required) |
| 3 | 7E391 | Selector lever trim ring |
| 4 | W710338 | Floor console finish panel retaining clip (3 required) |
| 5 | 045A76 | Floor console finish panel |
| 6 | 04608 RH/ 04609 LH | Floor console trim panel |
| 7 | W710338 | Floor console trim panel retaining clip (10 required) |
| 8 | W713267 | Floor console trim panel pin-type retainer (2 required) |
| 9 | W505424 | Front floor console lower bolt (4 required) |
| 10 | W707628 | Floor console upper bolt (2 required) |
| 11 | 13530 | Floor console rear storage compartment |
| 12 | - | Floor console electrical connector (part of 045A36) |
| 13 | 045A36 | Floor console |
