Removal And Installation: Ballast: Notes

WARNING: This page is about a different car, the 2009 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.

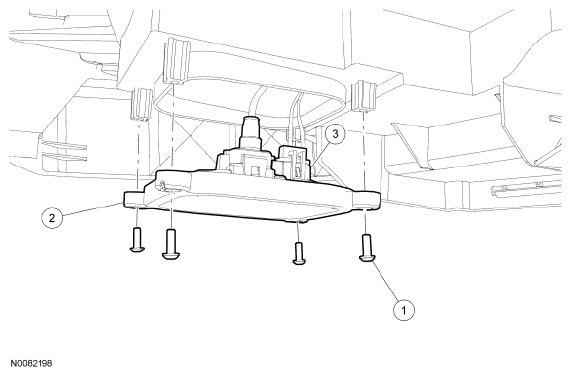

Fig 1: Identifying Ballast Components

Courtesy of FORD MOTOR CO.

PART DESCRIPTION CHART

Item	Part Number	Description
1	W7 04874	Ballast screws (4 required)
2	13C1770	Ballast
3	13A006	Ballast electrical connectors
