Right Side Air Bag Module Connector
Right Side Air Bag Module Connector

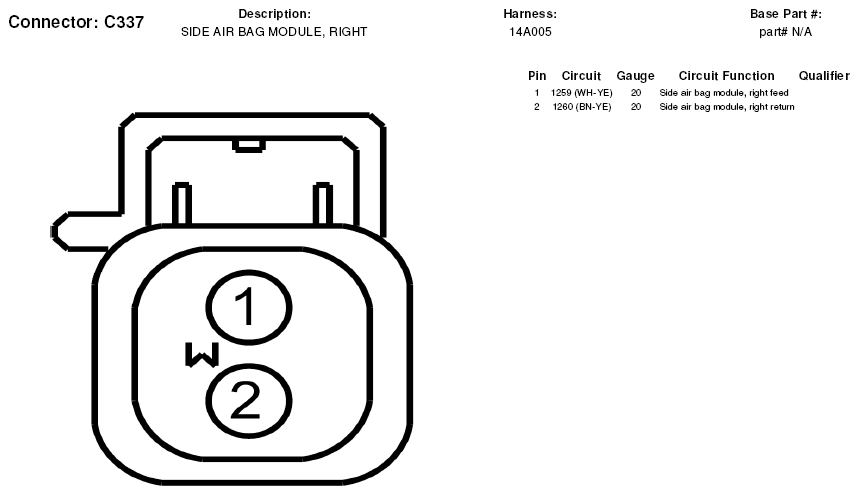

Fig 1: Right Side Air Bag Module Connector End View (C337)
